iDUCTOR

The iDuctor, the ultimate precision heating tool

The iDuctor W1200 and W2300 Power Plus

Developed to dismantle even the heaviest metal connections
The iDuctor, the ultimate hand tool for heating up large and heavy machineparts in a very short time
With 1200 and 2300 Watts these tools are setting a new standard in the world of induction heating

Products4Ships iDuctor

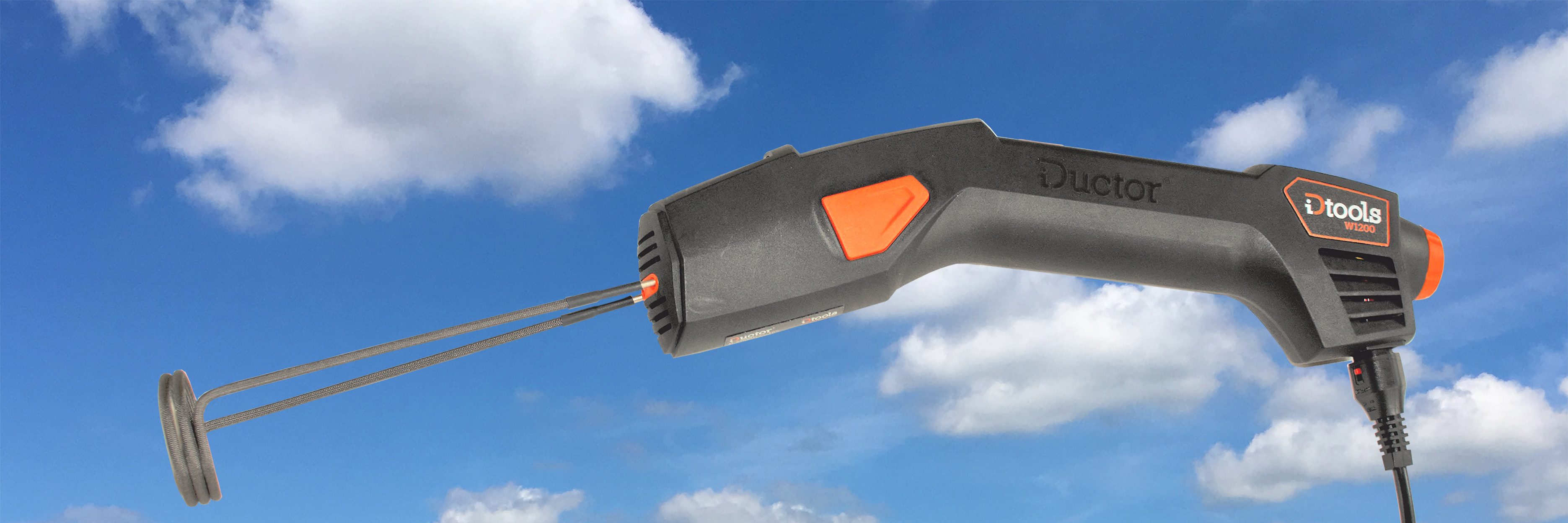

iDuctor W1200



Products4Ships iDuctor Power Plus

iDuctor W2300

Principle:
This electronic tool applies heat through induction technology, which makes it possible heating up a wide range of ferrous metals from the inside out
Characteristic of induction heating is that the outer components are heated, in contrast with the use of a gas burner which heats everything simultanously
The difference in temperature (and expansion) of the components makes it easier to seperate them from each other
Local heating is possible within a few seconds.

Products4Ships iDuctor Pro-Kit

Content Pro-Kit:
iDuctor W1200 + power cord with IEC lock
Set of 8 heating coils (M8, 2xM10, M12, M16, M20, M24 & M30)
Flexible heating cord 1100mm
Suitcase



Products4Ships iDuctor Power Plus Basic-Kit

Content Power Plus Basic-Kit:
iDuctor W2300 + power cord with IEC lock
Set of 2 heating coils (M8 & M10)
Flexible heating cord 2000mm
Suitcase

Applications:
The iDuctor can be used with stuck and corroded nuts, bolts, shafts, bearings and similar components
Components like this at positions which regularly experience heat, vibration, oxidation or corrosion
are often very difficult or impossible to remove with ordinary tools



Safety and benefits:
A gas burner or an angled grinder are often used for this purpose.
The disadvantage of an unprotected flame can be risky and unsafe
sparks, caused by the angled grinder, are risky and grinding will damage
the other parts around. Using the iDuctor will be a great advantage because
induction technology is faster, safer and flameless in relation to the alternatives.
Induction also offers a way out in case metal components are frozen together.





Characteristics of the iDuctor Power Plus W2300:

  • Able to heat up large machine parts, in weight and size

  • A wide range of applications per example for the Shipbuilding, Shipping and offshore

  • The Power Plus set with suitcase weights 4kg and the single tool just weights 1,4 kg

  • If necessary, higher temperatures can be reached

  • To be used with special spirals and longer flexible cables  with the lengths of

    2000mm, 2500mm, 3000mm and 3500mm



Products4Ships iductor manual EN



Products4Ships iDuctor flyer

Video-demo

Note: In practise, normally it won't be necessary extremely heating up the metal components till they are red hot
in order to free them. The red hot components as illustrated in the flyer are only to illustrate the heating power of the iDuctor.
Excessive temperatures could cause degradation of the heated metal and damage of the heating coil

Extra accessoiries:

Products4Ships iDuctor

Flexible heating cord 1100mm, 2000mm, 2500mm, 3000mm & 3500mm

Products4Ships iDuctor heatpad

Heatpad to remove stickers, paint- and glue residues

Products4Ships iDuctor

U-heating coil bendable at specific shape as needed

Products4Ships iDuctor

Fusee heater

Products4Ships is also the official iDuctor distributor in Singapore

Newera logo

Newera, our partner for the iDuctor in Singapore.

Specialized in high quality, professional industrial tools and equipment

Demo:
If you are interested and want to know more about the iDuctor, please send your request at info@products4ships.com
and we will contact you to make an appointment for a demo
